- 30 inch deep body truss
- Angle iron construction
- Six foot long receiving hopper
- 850 stph (short tons/hr) @ 310 fpm (ft/min)
- 5" Luff 3400 Series rubber disced return rolls with maximum spacing of 10'
- 20 degree steel Luff 3400 Series trough sets under the hopper
- 35 degree Luff 3400 Series trough sets with maximum spacing of 48"
- Luff guide rolls set at head and tail end
- Double wrap belt drive
- 14" rubber lagged crown faced drum (wrap drive) pulley c/w 3-7/16" shaft with S2000 bearings
- 12" crown faced drum (wrap driven) pulley c/w 3-7/16" shaft with S2000 bearings
- 14" crown faced drum head pulley c/w 3-7/16" shaft with S2000 bearings
- 12" crown faced winged tail pulley c/w 3-7/16" shaft with S2000 bearings
- Dodge shaft mounted TA6 reducer with backstop
- Belt drive c/w guard
- Tail guards covering the tail length up to 10 feet height (in operating position)
- 40 HP 3/60/230/460 TEFC drive motor
- 1/4" X 1/16" 3-ply 375 PIW Duraline belting with vulcanized belt splice
- Dual 11.00 x 22.5 radial tires
- Running lights

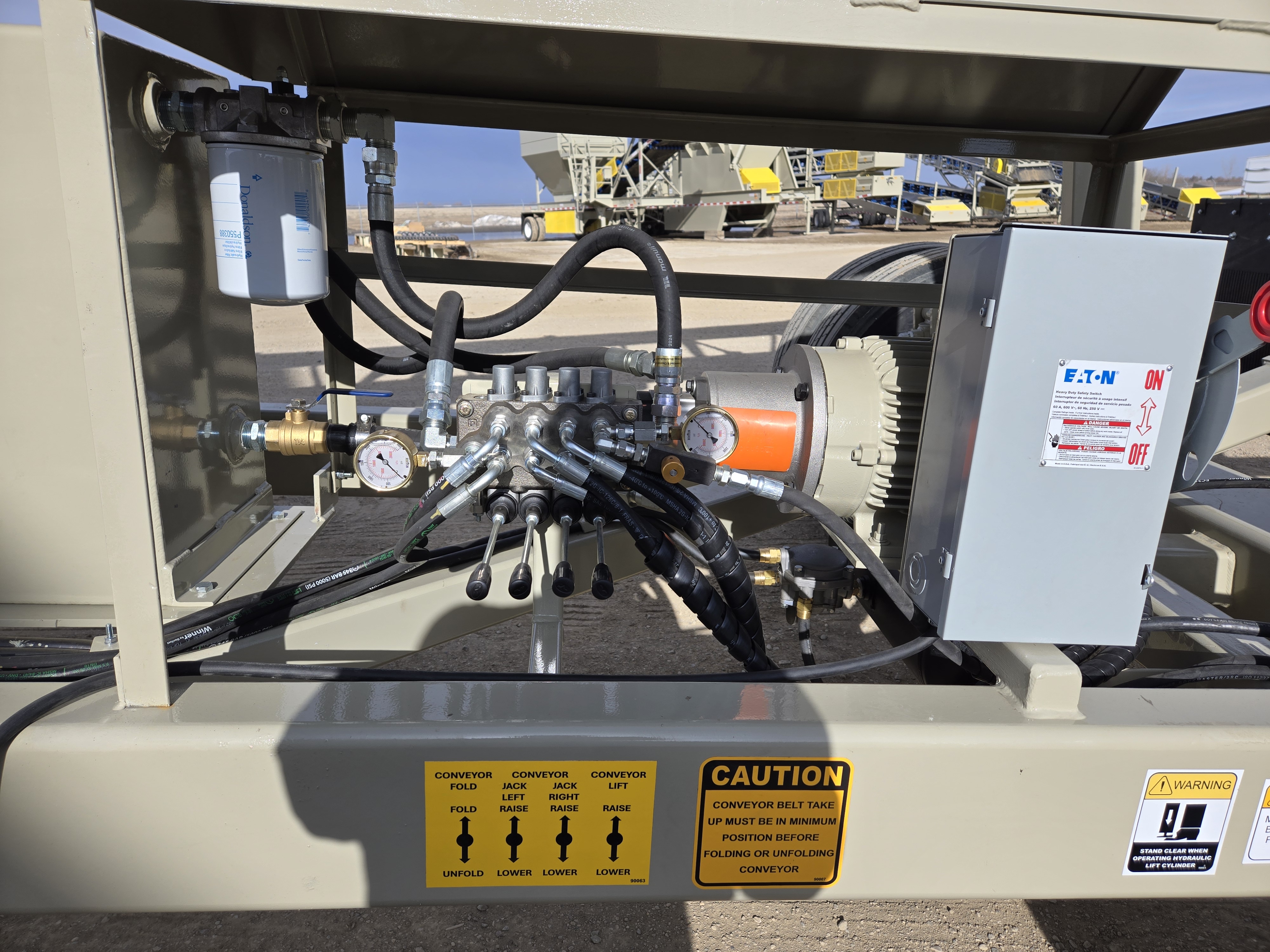

- V style undercarriage with hydraulic lift

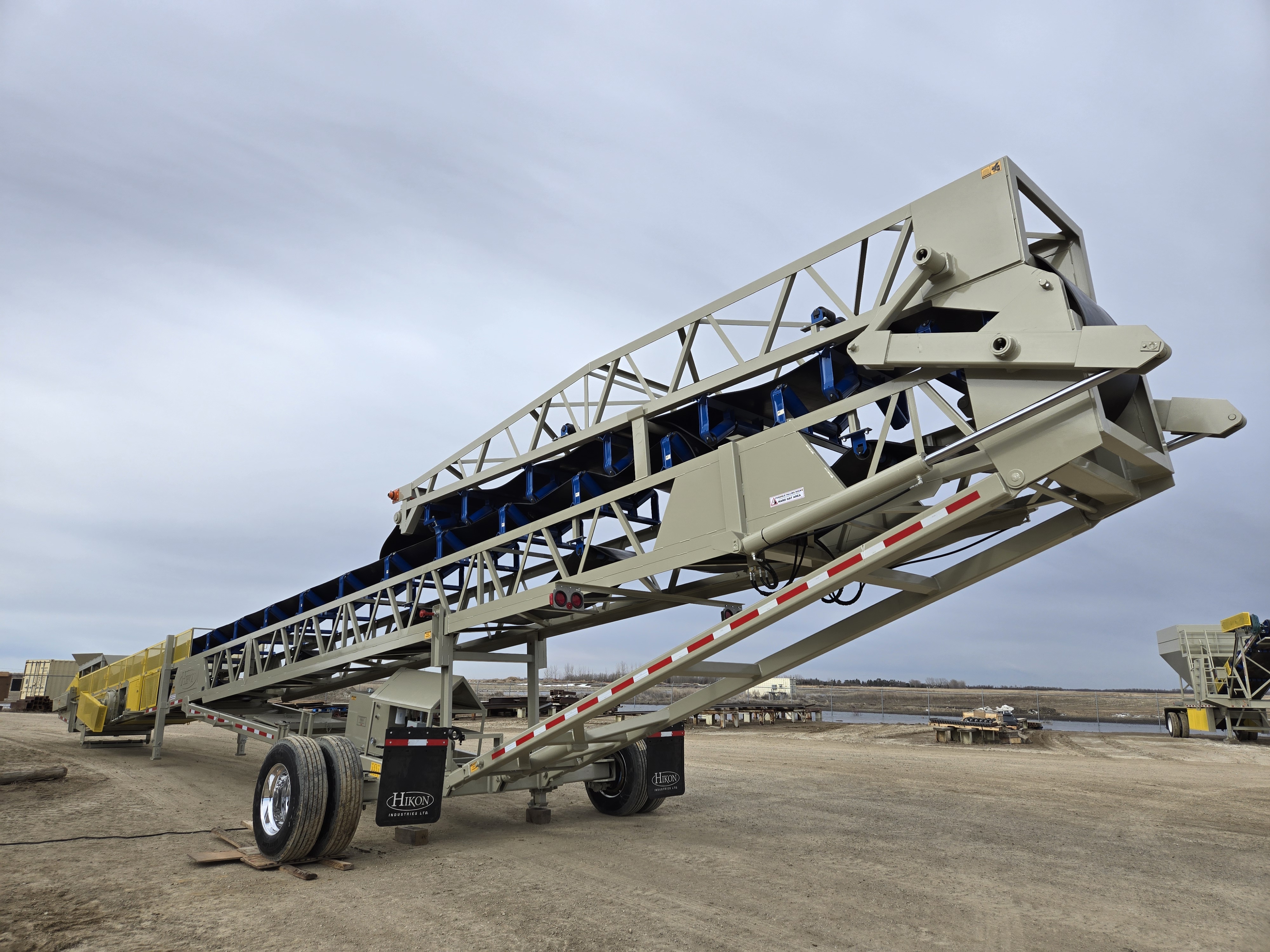

- Single fold with hydraulic folding/unfolding
- Jacking legs with independent hydraulic raise/lower
- 3 position control levers for above hydraulic operations
- 7.5 HP 3/60/230/460 TEFC motor for Hydraulic Power Pack
- Swivel aluminum wheels
- Extendable axle
- Kingpin
- Air brakes
- Tail end lift lugs
- Telescoping landing legs
- Tail Swivel plate with anchor pins
- Martin primary belt scraper on head pulley
- blasted and painted with Hikon Grey Durathane paint
- cord hangers
- c/w 100' long cord and 60 amp male cord end for 40 HP drive motor
- c/w 100' long cord and 30 amp male cord end for 7.5 HP hydraulic motor
- Shutoff Switch for both motors specified above
